Concentration and Bulk Bag Filling Equipment
Connect evaporation, concentrate handling, thermal processing and bag filling around a defined feed and finished-product specification.
Material boundary
- Start with
- Prepared juice or pumpable pulp with measured solids and temperature.
- Produce
- Concentrate at the selected solids target, filled into compatible supported bags.
Connected operations
Condition the evaporation feed
The product may need finishing or clarification before concentration, depending on the wanted texture and the exchanger passages. The feed tank supplies a controlled stream so the evaporation system is not driven by short interruptions in fruit recovery.
Remove water through the selected system
The evaporation arrangement combines heating, vapour separation, circulation, vacuum and condensing services. A low-viscosity juice can behave differently from a thick puree as solids rise. Product distribution, residence and fouling must be reviewed at the expected final concentration.
Transfer the concentrate at its actual condition
Concentrate temperature and viscosity affect pump selection, tank discharge and pipe resistance. The downstream thermal section uses those actual properties when setting passages, pressure and holding configuration. Avoid treating the original dilute-feed duty as the concentrate duty.
Fill a defined bag and fitment
The bag-filling stations connect to the prepared product path and support bags in drums on roller conveyors. Bag fitment, fill mass and product temperature are specified together. Any included package handling or closure operation is identified in the equipment scope.
Capacity, services and supply boundary
Keep feed kg/h, concentrate kg/h and evaporated-water kg/h as separate quantities, with solids and temperature conditions. Concentration, formulation and reconstitution are different product histories. Heating, cooling, vacuum, condensate and cleaning services are established for the complete selected arrangement.
The equipment list identifies the machines, product connections and services included in supply. Existing preparation, storage or packaging equipment can be retained where the interface requirements are compatible.
Machines in this route
Open the equipment details
Concentrate
Fruit Juice and Puree Evaporation System
A vessel, exchanger and pump arrangement for removing water from a specified juice or pulp stream.
Vacuum evaporation with a defined product circulation path
Transfer & balance
Fruit Product Tanks and Transfer Pumps
Product vessels, accessible pipe connections and transfer pumps form a controlled buffer between fruit-processing machines.
Product holding and pumped transfer
Treat the product
Tubular Fruit Product Thermal System
A skid-mounted heating, holding and cooling arrangement with product vessels, tube sections, valves and local controls.
Continuous indirect product heat treatment
Fill & close
Aseptic Bag Filling System
A bag-filling arrangement with guarded filling stations, a central control enclosure and roller conveyors for supported bags in drums.
Controlled product transfer through a compatible bag fitment
Clean equipment

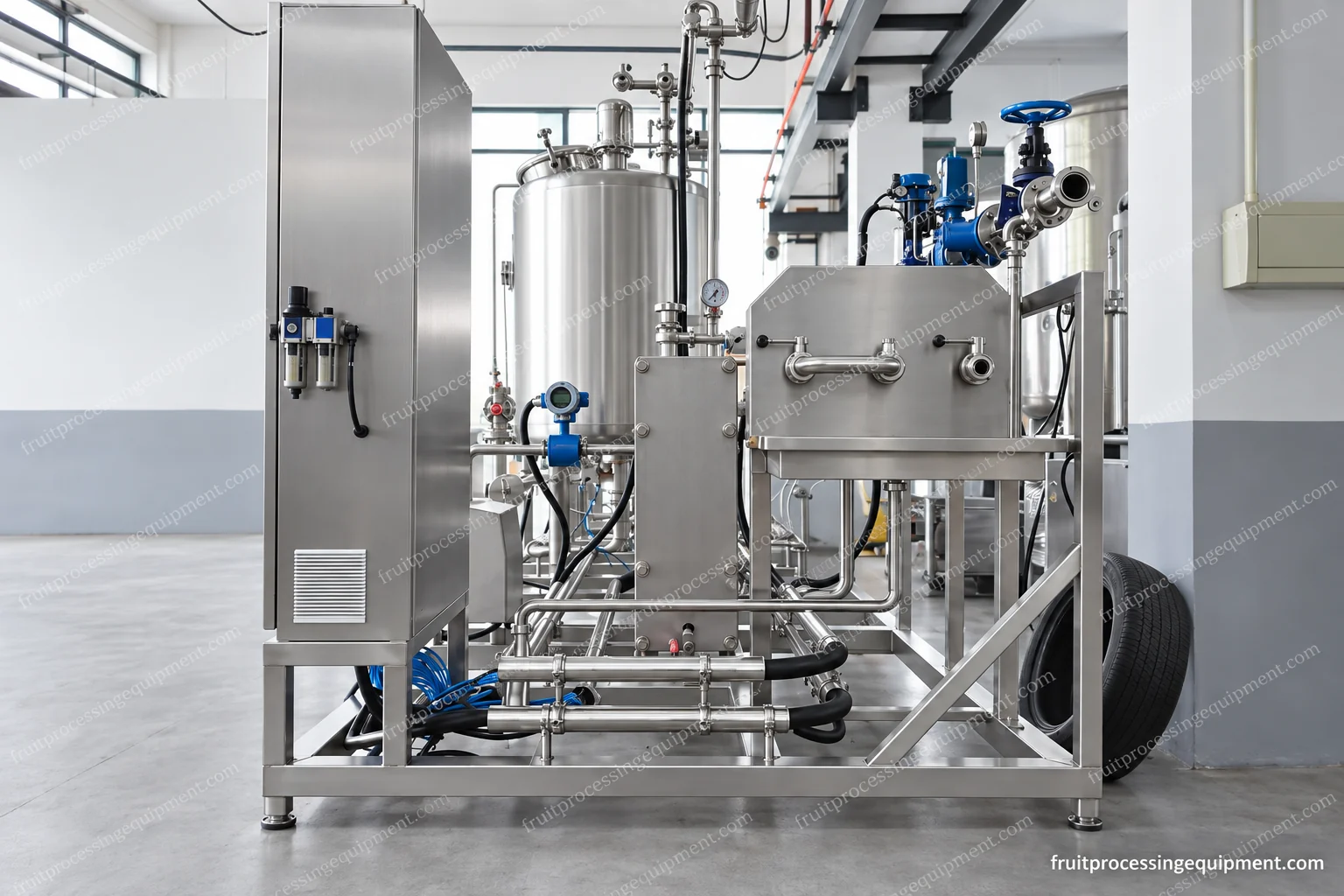

CIP Cleaning Skid
A cleaning-service assembly with a vessel, pump, heater, valve connections and instruments for defined closed product circuits.
Circulating cleaning services through a selected supply and return path
Plan the equipment connections.
Review the product handoffs, controls, utilities and cleaning circuits alongside the machine selection.
